Product title:Magohm Meter SJC-030B

  • Product detail:Measuring surface 10e-10e12 ohm impedance, ohms measurement resistor 10e5-10e12 Relative Humidity: 10% -90% RH Temperature: 32.F-100, F (0degree.C-37.8degree.C)

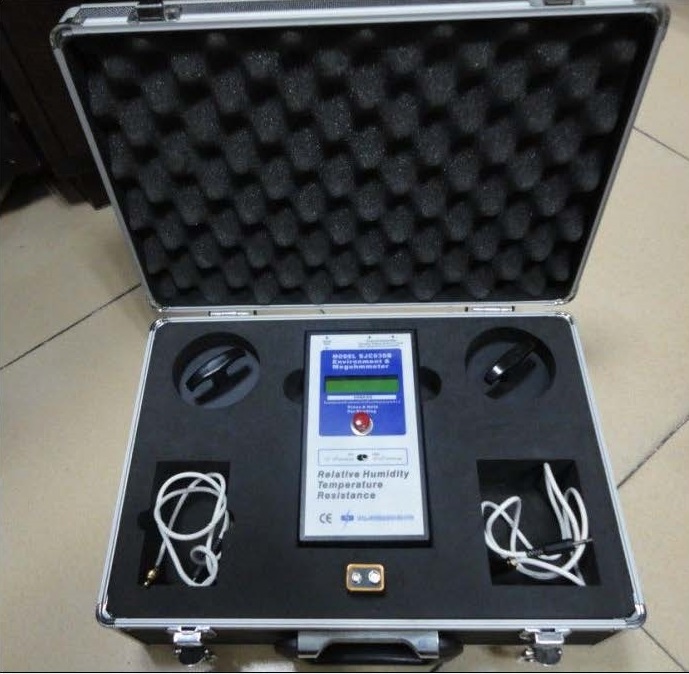

    Magohm Meter, SJC-030B


    MAGOHM METER SJC-030B.jpg



    Describle:

    SJC-030B is based on the United States ACL-800 heavy hammer surface resistance tester design principle, combined with the user's actual temperature conditions designed by a set of measuring surface resistance and environmental humidity three functions as one of the more functional resistance tester for measuring the impedance or resistance of all type conductivity, antistatic and electrostatic discharge type surface. Compared to ordinary domestic resistance tester measurement is more accurate, more precise data, but also save users purchasing imported high cost of precision measuring instruments.

    Features:

      1. with a plastic instrument to protect me, to prevent damage to the instrument.

      2. Light weight, only 425g, easy to carry.

      3. LCD digital display, easy to use, easy reading.

      4. Automatic power-off function to extend the battery life.

      5. Automatic back to zero, to ensure accuracy.

      6. parallel electrodes, one pound probe and built-in impedance probe, are in line with ASTM, EOS and CECC standards.

      7. Replace probe and prolong life.

      8.9V DC or nickel-cadmium rechargeable battery or AC adapter.

      9. Set impedance, humidity, temperature, three measurements in one instrument.


    Function:

    Measuring surface 10e-10e12 ohm impedance, ohms measurement resistor 10e5-10e12

    Relative Humidity: 10% -90% RH

    Temperature: 32.F-100, F (0degree.C-37.8degree.C)

    High precision: full scale within the range

    Two 5-pound, 2.5 inches RTT, RTG disc-shaped motor.
