SMT ESD PCB Storage Trolley SP-TRO-102

Product title：SMT ESD PCB Storage Trolley SP-TRO-102

Product detail：Application: Electronics industrial storage & circulation ESD protection

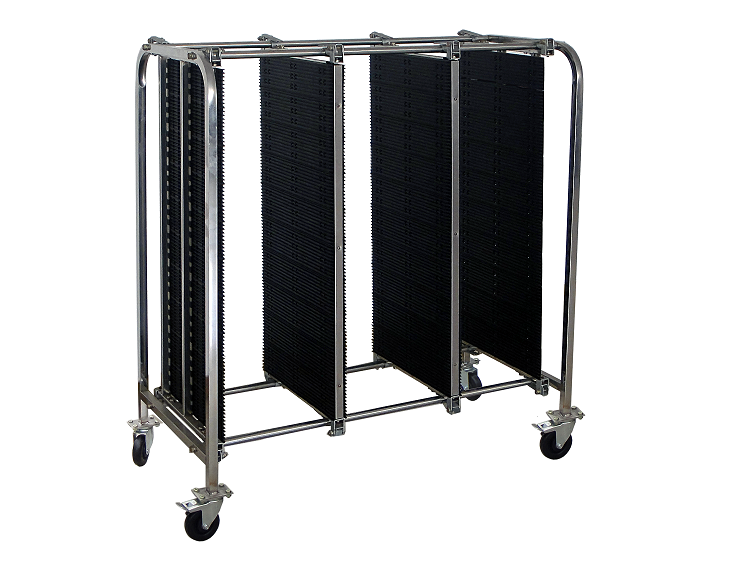

ESD PCB Plate Trolley SP-TRO-102

ESD PCB trolley is composed of plastic side plate and stainless steel frame rack, and wheels. We have many size and

types of side plate to meet different customers’ request on size. And we could offer different types of wheels to meet

different customer on load request

Application:

Electronics industrial storage & circulation

ESD protection

Specification:

· Side Plate Material: PP compound with conductive fiber

· Side Plate Type: Injection mold

· Color: black

· Trolley frame rack material: stainless steel

· Trolley frame rack: square type

· Adjustable method: handle adjustable/screw adjustable

· Each row can insert 100pcs pcbs, adding more double flashboard, it can insert more PCBs. It can store, 300pcs

· Max. Load: 100kg or, if customer have higher request load, we could make higher configuration for you.

Available size we could make:

MODEL	Trolley Size	Plastic small panel size	Slot width	Depth	Pitch	Slot No. /per row	Side plate structure
SP-TRO102	9606501300mm/ 12006501300mm	460*248mm	4.5mm	4.5mm	10mm	100	4pcs small panel
SP-TRO102-2	9605501380mm 12005501380mm	460*248mm	4.5mm	4.5mm	10mm	100	4pcs small panel
		10e6-10e9 ohms	Any size can be customized according to customer request. Each can put 100pcs PCBs, adding double flashboard, it can insert more PCBs.
