Product title:SP-AP-DC2452-80C Self-cleaning suspended ion fan

  • Product detail:

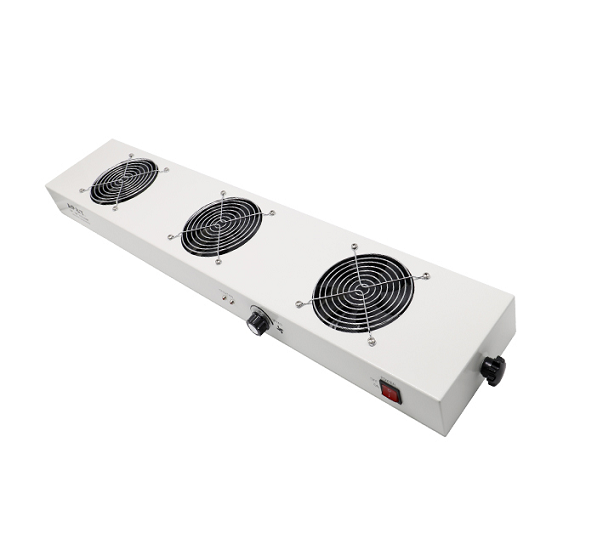

    SP-AP-DC2452-80C Automatic Cleaning three- fan Ionizing Air Blower


    The product overview

    The AP-DC2452-80C self-cleaning suspended ion fan is one of the ion fan series products produced by AP&T.

    The AP-DC2452-80C self-cleaning suspended ion fan uses positive and negative synchronous emitter electrodes to generate corona discharge through DC high voltage, ionizes air molecules, generates a large number of positive and negative air ions, and blows them by the fan. Dissipate the surface of the object to eliminate static electricity.


    Industry applications

    Can be widely used in electronics, optoelectronics, semiconductor and other industries.


    Product features

    (1) Suitable for static elimination in large areas.

    (2) Multi-unit independent ion transmission port combination, fan stepless speed regulation.

    (3) It has the function of automatic brushing at boot.

    (4) Automatically brush the needle once every 24 hours, eliminating the need for manual brush cleaning and maintenance.

    (5) Fast static elimination and good circuit stability.

    (6) The front and rear net covers are detachable and easy to maintain.


    Technical specifications



    Input voltage

    AC220V/50Hz or 110V/60Hz



    Working voltage


    Ion emission

    steady state DC

    Emitter electrode

    tungsten alloy

    Discharge structure

     without coupling electrical contact (discharge cylinder)

    Discharge range


    Dissipation speed

     ≤ 3s (450mm perpendicular to the center of the air outlet)

    Ion balance

    -10V ~ +10V (450mm vertical from the center of the outlet)

    Alarm indication

    Power indicator is on, normal operation

    Air volume



    ≤ 60db (150mm from the air outlet)

    Ozone concentration

    ≤0.05ppm (150mm from the air outlet)

    Working temperature

    0-50 °C

    Working humidity




    Shell material

    Aluminum powder

    Installation accessories

    1 pair of L-shaped aluminum powder spray mounting bracket, 1 pair of bakelite screw handles (M6×12)

    Net weight

    2500g (including accessories: 1 power cord, 1 mounting bracket, screw handle and gasket 2 kit.)

    Gross weight


    Quality assurance

    1 year




     Security warning

    1. Please read the instruction manual carefully before installing and using the device.

    2. The whole set of equipment must be reliably grounded during use.

    3. It is not advisable to use the device in a >70% humidity environment.

    4. It is strictly forbidden to use this equipment in flammable and explosive environments.

    5. It is strictly forbidden to disassemble the product without authorization. Internal maintenance and repair must be carried out by professionals.

    6. The product is strictly prohibited from touching water stains, otherwise abnormalities may occur, resulting in electric shock or fire.

    7. Check or replace the product, you must turn off the power, otherwise it may cause electric shock or fire.

    8. The product is designed for static elimination. It is strictly forbidden to use for other purposes. Any abnormal use may cause machine malfunction, electric shock, fire and other hidden dangers.

    9. Do not touch the electrode needle when the power is on, otherwise it may cause malfunction and electric shock.

    10. The discharge needle is a sharp metal object, please use it with care.

    11. Before powering on the product, please check the specifications of the power supply. Any power supply that does not meet the specifications will cause damage or even malfunction.

    12. Please check the product power cord/communication line regularly. If there is any damage, please replace it immediately, otherwise it will cause problems such as leakage, poor communication and abnormal operation.

    Installation and Use

    Structure size


    Installation method


    When using, use screws or bolts to fix the mounting bracket to a firm and flat surface (such as a wall or shelf). The angle of the fan can be adjusted by the knobs on the two sides of the bracket for optimal static elimination.


    Technical tips:

    1) When using an ion fan, it should be placed in the static elimination working area. The installation angle should be perpendicular to the surface of the charged body, about 300~750mm away from the static elimination object.

    2) The ion fan should be at least 30cm away from the metal conductor and metal grounding body.

    3) The ion fan is preferably 20 cm or more from an obstacle such as a wall.


    4) The air inlet is at least 15cm away from the wall.


    5) Troubleshooting solution:



    Possible reason



    Fan panel indicator is not lit

    Poor power cable connection


    Confirm that the power cord is intact and securely connected

    Power supply voltage does not match

    INPUT: 220VAC 50/60Hz


    The static elimination performance is significantly reduced

    Discharge needle contamination and damage

    Clean or replace the discharge needle

    Ion fan set orientation is not appropriate

    Confirm the best installation location


    Reduced static performance

    Conductor or other ion fan around the ion fan

    Remove (moving) conductors or other ion fans


    Unable to discharge

    High voltage module damage

    Return to factory maintenance

    Motherboard chip damage

    Return to factory maintenance


    The product smokes or burns

    Main control board components burned out

    Return to factory maintenance



    1. In order to ensure the good performance of the product, the fan should be cleaned and maintained in time according to the use environment and the required static protection requirements. That is, use an electrostatic brush and a clean cloth to remove the alcohol and gently remove the electrode and metal. Carbon deposits on the net cover. Note:

    A. It must be operated 10 minutes after the power is turned off.

    B. When the fan is in use, it must be cleaned when there is dust or white matter on the tip of the needle.

    C. After cleaning, the alcohol must be completely evaporated and then energized. Do not use any other organic solvent to clean the fan.

    D. The alloy electrode is a consumable item and is not covered by the warranty. The company has to charge for the replacement of the customer.

    2. Press the \ knob on each panel of the fan panel. The user should not press or rotate excessively. Otherwise, the device will be permanently damaged.

    3. If the power working indicator on the front panel of the fan is off, it should be stopped, and it should be checked and repaired by professional maintenance personnel. It can be used after the electrical performance index is normal.


    After sales service

    1. AP-DC2452-80C self-cleaning suspended ion fan has undergone rigorous testing and aging treatment before leaving the factory, and its performance fully meets the relevant indicators marked in the instructions for use.

    2. AP&T makes the following commitments to the user: Within one year from the date of purchase, the company will repair or replace any parts that have been inspected by the company for free. However, this commitment does not apply to the following conditions: equipment is misused, installed; negligence during use, accidental damage; self-modification, disassembly, or other non-Anping authorized service department.

    3. AP&T assumes no responsibility or liability for product users other than repair or replacement of parts within this specification.


    Packaging accessories

    1, warranty card 2, manual 3, certificate 4, GB power cord
