Product title:Ionizing Air Nozzle SP-AC2454-A

  • Product detail:2、Features 1、Small size and easy installation 2、Excellent electrical property data and good performance 3、Static eliminating while cleaning the surface dust 4、Safe and reliable working under high voltage and micro current 5、With AP-AC2455 series high voltage power supply

    SP-AC2454-A  Ionizing Air Nozzle

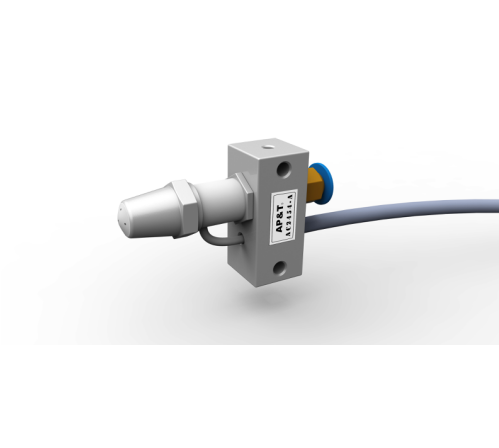

    1Appearance






    2Features

    1Small size and easy installation

    2Excellent electrical property data and good performance

    3Static eliminating while cleaning the surface dust

    4、Safe and reliable working under high voltage and micro current

    5With AP-AC2455 series high voltage power supply

    Industry Applications

    Used in electronics, optoelectronics, semiconductors, plastics, films and printing industries

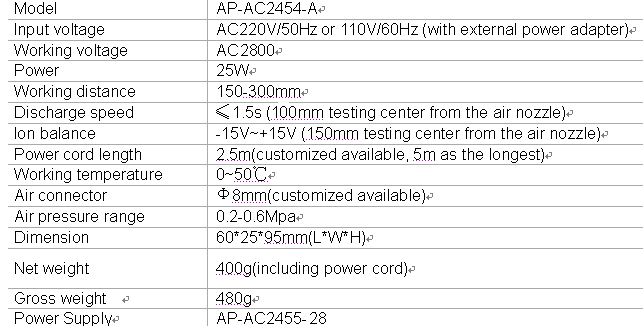

    3Specification

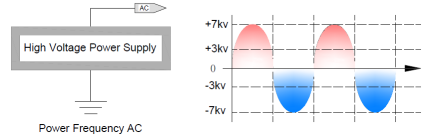

    4Working WaysAC

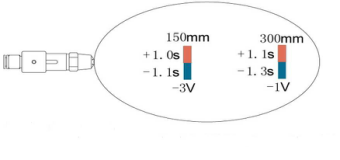

    5Elimination Effect


    Testing instrument 3M-711 Static tester

    Testing standard SJ/T10694-2006GB/T14437-97

    Testing voltage ±1000 — ±100V Attenuation

    Testing environment Humidity30%—50%  Temperature20±5℃

    Testing Air pressure0.5MPa

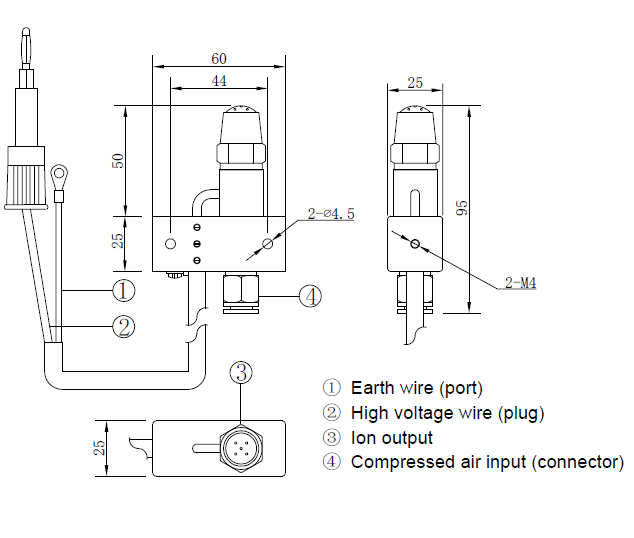

    6Dimension

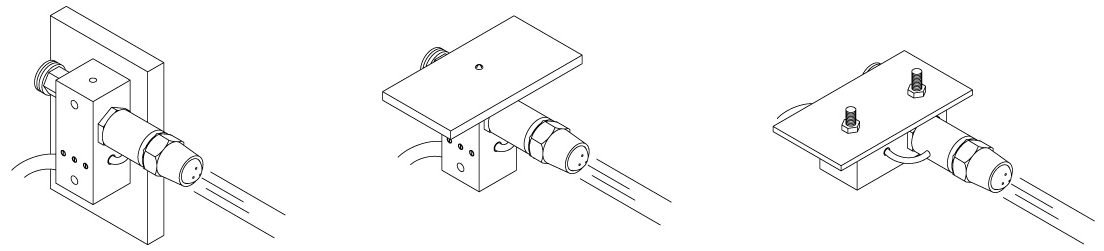

    7Positioning
