Product title:Dispensing Controller SP-982B

  • Product detail:Time of each injection controlled by timer, dispensing at regular time and quantity to ensure same glue quantity each time.

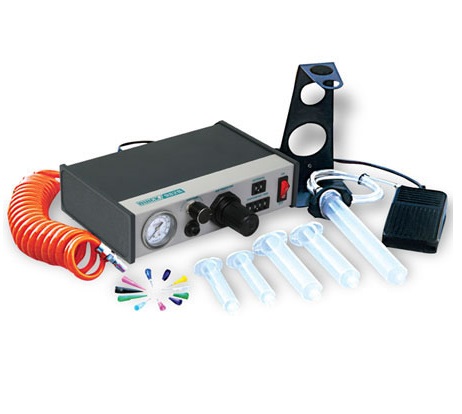

    Dispenser Controller SP-982B


    Features
    1. Time of each injection controlled by timer, dispensing at regular time and quantity to ensure same glue quantity each time.
    2. Select right nozzles, set right injection time and pressure, each injection time and quantity can be changed.
    3. Dispensing controller can be used to inject liquid or paste, include red gel, yellow gel, epoxy resin, solder, silica gel, soldering fluid and etc.
    4. Pedal switch and manual control modes available, manual modes are more suitable for stand-up staff.
    5. Various barrels and nozzles are available.
    6. New automatic dispensing machine available.

    Specifications

    Dispensing modes16 modes available
    Dispensing time0.01S-99.99S adjustable
    Time interval0.1S-9.9S adjustable
    Repeat stability±0.05%
    Dimensions238(L)*150(W)*60(H)mm
    WeightAbout 1.7kg
    Inner voltageAC 24V
    Min injection dosage0.01ml
    Input air pressure0.25-0.7MPa(2.5-7kg)
    Output air pressure0.01-0.7MPa(1-7kg)
