Product title：**Gear Belt adjustment ESD Magazine Rack SP-1801/1801G 355320563mm**

Product detail：Width Adjusment by gear belt , handing different PCB sizes the magazines have to adjusted to PCB width quite often , the PCB magazines of SP-17 series are adjusted to the necessary PCB width within seconds

Gear Belt adjustment PCB Magazine Rack

Code: SP-1801

Precision, stablity and flexible handing are important feature for the use of PCB Magazines Racks in automated assembly lines The stable and robust frame construction guaranteed a long lasting use of the SOUP ESD Magazine rack in your production .

For automated assembly lines

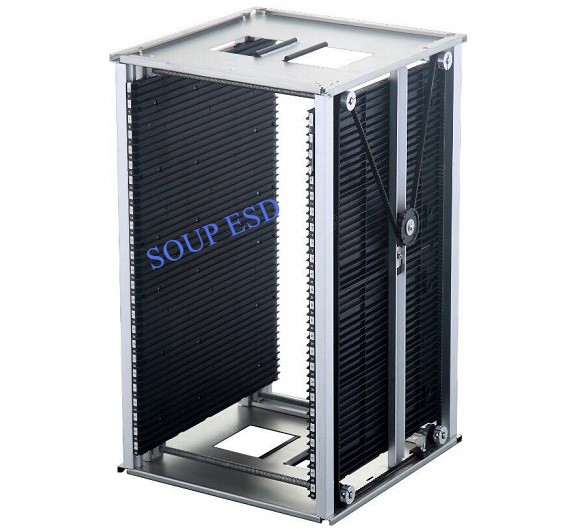

Gear Belt adjust esd magazine rack.jpg

Magazine rack demension.png

Specification:

Width Adjusment by gear belt , handing different PCB sizes the magazines have to adjusted to PCB width quite often , the PCB magazines of SP-18 series are adjusted to the necessary PCB width within seconds

Application:

-Store and logistic PCB, Electronic components

-ESD Protection on SMT, SMD , Semiconductor industrial

-Accoding to ANSI/ESD S20.20 Standard, ISO9001:2008 quality system .

Detail:

Contour Size(L×W×H)mm	Slot of side plate			PCB board use standard
Contour Size(L×W×H)mm	Depth	Width	Pitch	Adustable Width	PCB Stored
355320563mm	3.5mm	5mm	10mm	50-250mm	50
Adjustment Method	Side Plate			Base Materialt	Weight
Gear Belt adjustable	2 plates			Metal	7 kg
Model SP-1801 Temperature for PCB : 80 degree.C Model SP-1801G Temperature for PCB : 120 degree.C
Dissipative Type 1.0×10E4Ω～1.0×10E8Ω
