Product title:Large SMT ESD PCB Magazine Rack 460*400*563mm SP-09/SP-09G

  • Product detail:Product detail:1) M size: 460*400*563mm , 2)top & bottom : Metal 3)Temperature: 80 or 120degree.C 4) PCB adjust: 460*(70-330)mm SOUP ESD PCB Magazine Racks are available with various types and sizes to meet customer's needs and all models are compatible with standard SMT equipment.

    Large SMT ESD PCB Magazine Rack 460*400*563mm SP-09/SP-09G

    Code: SP-09 /SP-09G

    Precision, stablity and flexible handing are important feature for the use of PCB Magazines in automated assembly lines The stable and robust frame construction guaranteed a long lasting use of the SOUP ESD Magazine rack in your production .


    For automated assembly lines

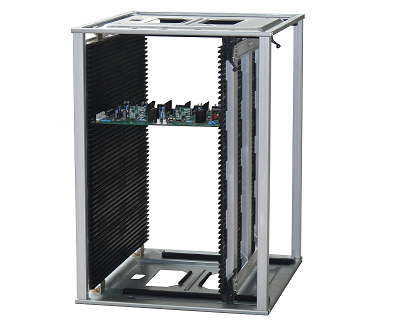

    anti-static PCB magazine rack sp-09,09G.png

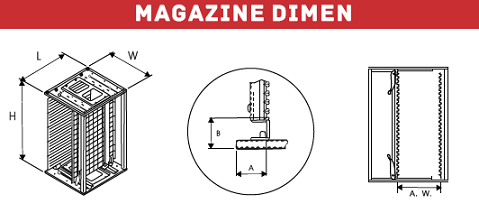

    Magazine rack demension.png


    Specification:

    Material: Conductive PP /PPE, Zinc Coating Steel, Aluminium Alloy


    Application:

    -Store and logistic PCB, Electronic components

    -ESD Protection on SMT, SMD , Semiconductor industrial

    -Accoding to ANSI/ESD S20.20 Standard, ISO9001:2008 quality system .


    Detail:

    Contour Size(L×W×H)mmSlot of side platePCB board use standard
    DepthWidthPitchAdustable WidthPCB Stored
    460×400×5633mm5mm10mm(70-330)mm50 pcs
    Adjustment MethodSide PlateBase MaterialtWeight
    Handle Adjustable

    Five Pieces Assembled

    Metal8.8kg

    SP-09 Tempertuare: 80 , which is only fittable to pc board temperature.

    SP-09G Tempertuare: 120 , which is only fittable to pc board temperature.

    Surface Resistance
    Dissipative Type 1.0×104Ω~1.0×108Ω
