Product title:Ultra low humidity less 1% RH Dry Cabinet Dr.storage F1-400

  • Product detail:Dr.Storage 1% RH Dry Cabinet ; Ultra low humidity desiccant storage box for IC package, MSD, MBB, PCB storage

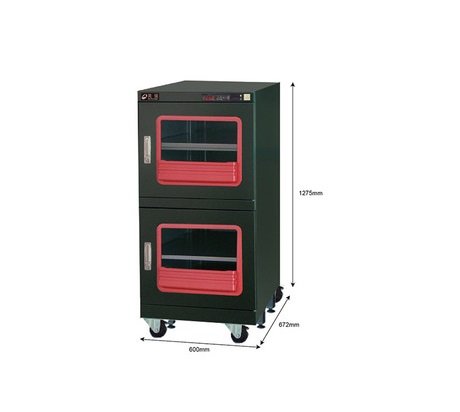

    Ultra low humidity less 1% RH Dry Cabinet Dr.storage F1-400




    PCB storage



    Dr.Storage 1% RH Dry Cabinet ; Ultra low humidity desiccant storage box for IC package, MSD, MBB, PCB storage



    ModelF1-1200-6F1-600F1-400F1-200
    Product Image
    Humidity Range<1%RH ±1%RH
    Precision±2%RH;±1℃ (at <10%RH, 25℃ )
    Recovery time (Open door 30 secs)Open door 30 seconds and close, 15 mins recovery time to <5%RH, 30 mins recovery time to <2%RH
    Voltage110V/230V
    External dimensions (mm)W1200*D672*H1815W600*D672*H1815W600*D672*H1275W600*D672*H632
    Internal dimensions (mm)W1198*D642*H1625W598*D642*H1625W598*D642*H1070W598*D642*H525
    Shelf dimensions (mm)W1155*D530*H20W555*D530*H20W555*D530*H20W555*D530*H20
    Capacity1250L624L411L202L
    No. of Shelf5532
    Power consumptionAve. 135Wh
    Max. 425W
    Ave. 83Wh
    Max. 285W
    Ave. 83Wh
    Max. 285W
    Ave. 83Wh
    Max. 285W

    Data SheetData SheetData SheetData Sheet
