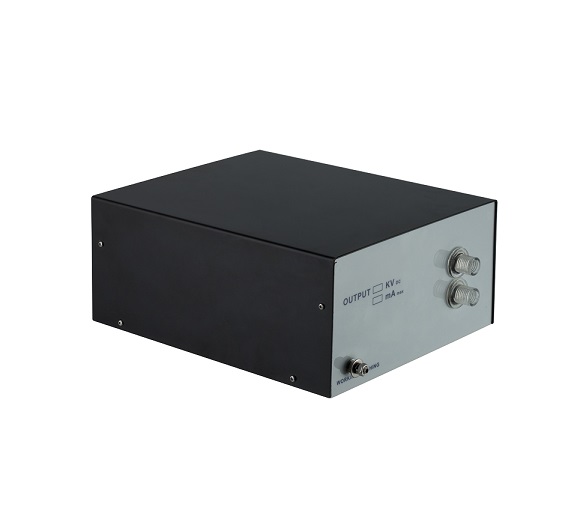

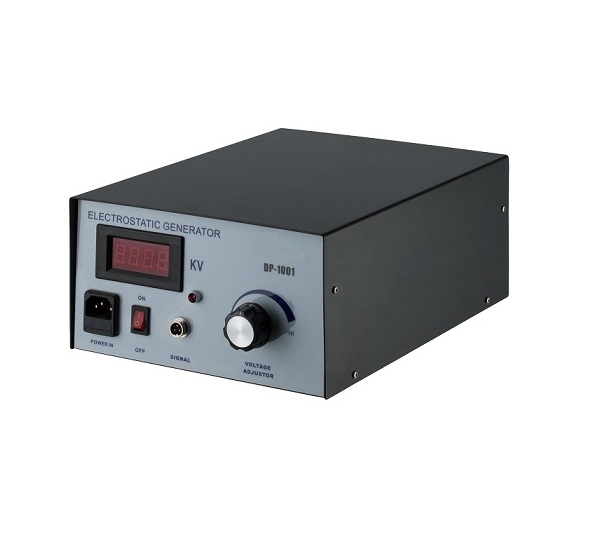

30KV High voltage Static Generator SP-DP-1001
Use and operation
· High voltage generator and discharge rod composed of electrostatic discharge system.
· High voltage generator output voltage is 0 ~ 30Kv.
High voltage generator and relay, photoelectric switch and other connections to achieve remote control of high-voltage output.
Technical Parameters
Input voltage: 220VAC 50Hz ~ 60Hz
Output voltage: 0 ~ 30Kv
Maximum power consumption: 40VA
Polarity: negative (N) / positive (P)
High voltage output interface: 2
External control interface: 3-core air connector
