Product title:SURPA 518-1 ESD Antistatic Wrist Strap Tester On-line Monitor

  • Product detail:Features: Designed to monitor resistance of the operator’s path to ground. It comes with a built in audible alarm and LED, triggering either when the operator falls out of spec, becomes disconnected, or ground is lost.

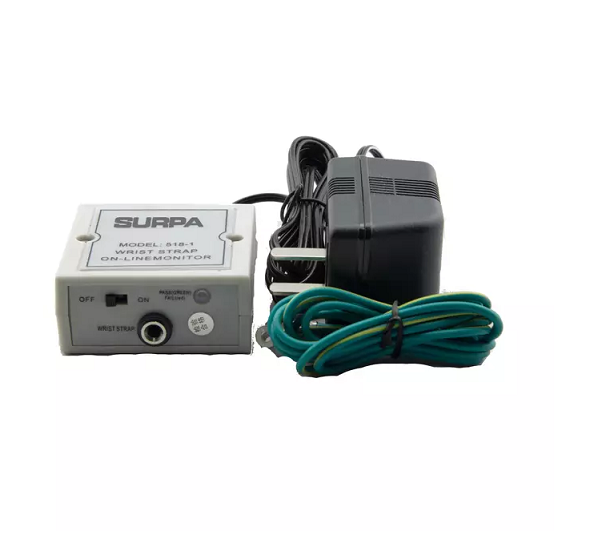

    SURPA 518-1 ESD Antistatic Wrist Strap Tester On-line Monitor






    MODEL:518-1

    Made of high precision electronic components,this product is highly precise,quick,small ( 61*58*28mm),light ( 62g) and easy to operate.

    It could alarm automatically towards body wrist strap earth system,and real-time monitor the work status of anti-static wrist strap;being so small,the monitor nearly ta-kes up no room,and operates without noise.It will provide reliable insurance to wrist strap earth system in anti-static work area.









    Earth system of body wrist strap in normal operation;no noise,green light on.

    Earth system of body wrist strap in circuit-broken status:buzz noise,red light glittering.

    Specification

    Output Voltage

    AC6V.0.3A

    Consumption

    1.8W

    Outer size

    L61*W58*H28

    weight

    62G

    accuracy

    1.4MΩ±5%

    accessires

    AC adpter    1pc

    Ground cord      1pc



    note:1 power adapter can be replaced:(100-110V  AC6V) (220-230V  AC6V)
