ESD Magazine Rack SP-03/03G screw adjust type

Position：A Safe electronic world » ESD Magazine Rack » SOUP PCB Magazines » ESD Magazine Rack SP-03/03G screw adjust type 355*320*563mm metal top

Product title：**ESD Magazine Rack SP-03/03G screw adjust type 355320563mm metal top**

Product detail：Screw adjust PCB magazine rack M size: 355*320*563mm , 2)top & bottom : Metal 3)Temperature: 80 or 120degree.C 4) PCB adjust: 350*(50-250)mm

ESD Magazine Rack SP-03/03G screw adjust type 355*320*563mm metal top

Code: SP-03 /SP-03G

Precision, stablity and flexible handing are important feature for the use of PCB Magazines in automated assembly lines The stable and robust frame construction guaranteed a long lasting use of the SOUP ESD Magazine rack in your production .

For automated assembly lines

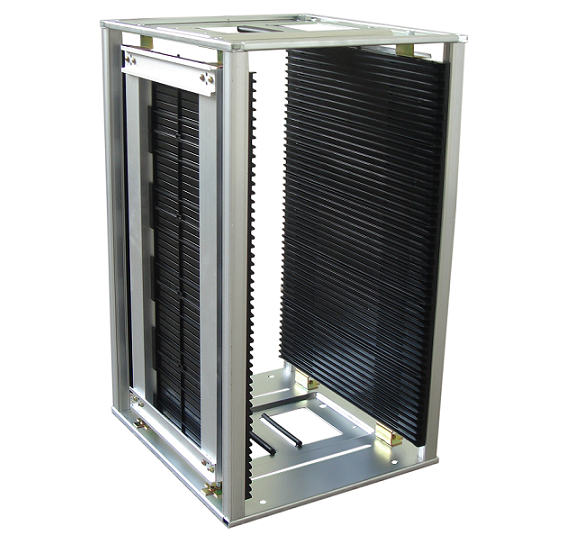

SP-03 screw adjust.png

Magazine rack demension.png

Specification:

Material: Conductive PP /PPE, Zinc Coating Steel, Aluminium Alloy

Application:

-Store and logistic PCB, Electronic components

-ESD Protection on SMT, SMD , Semiconductor industrial

-Accoding to ANSI/ESD S20.20 Standard, ISO9001:2008 quality system .

Detail:

Contour Size(L×W×H)mm	Slot of side plate			PCB board use standard
	Depth	Width	Pitch	Adustable Width	PCB Stored
355×320×563	3mm	5mm	10mm	(50-250)mm	50
Adjustment Method	Side Plate			Base Materialt	Weight
Screw Adjustable	Five Pieces Assembled			Metal	6kg
SP-03 Temperature 80℃ is only fittable to PC board SP-03G Temperature120 ℃is only fittable to PC board
Surface Resistance
Dissipative Type 1.0×10E4Ω～1.0×10E9Ω
