Product title:Ionizing air blower 2 fans AP-DC-2452-60C (auto brush type )

  • Product detail:Ionizing air blower 2 fans AP-DC-2452-60C (auto brush type )

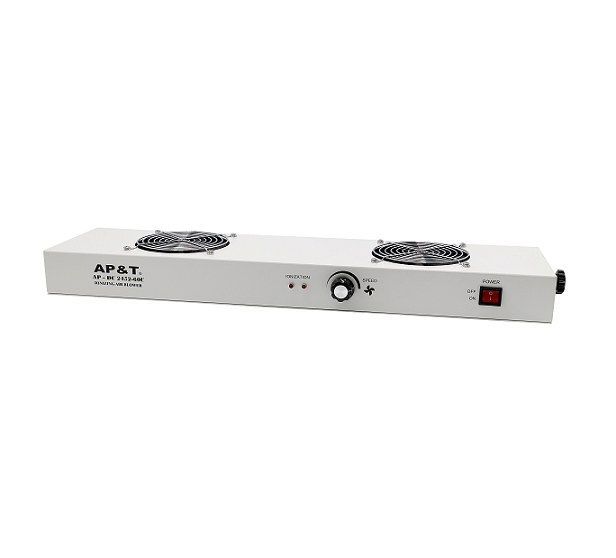

    AP-DC2452-60C

    Auto Clean Two-fan Overhead Ionizing Air Blower


    ◆ Product Feature



    1、 Fit for static elimination in large area

    2、 Auto cleaning function.

    3The combination of multi-units independent ion transmitting

    4Stepless adjustment of the air volume and longer lifetime of the fan

    5Fast speed of the elimination and stable performance of the circuit

    6Detachable cover net both front and back, convenient to clean and maintain





    Industry Applications



    Widely Used in electronics, optoelectronics, semiconductors, plastics, films and printing industries



    Specification



    Model               AP-DC2452-60C

    Working Voltage        DC12V

    Input Voltage          AC220V  50HZ

    Power              15W

    Discharge time          ≤3s(H 450mm to center, 1000V ~100V descent)

    Ion Balancing           ≤ ±10V(match ESD STM3.1-2000;IEC 61340-5-1 standard)

    Air volume(adjustable)  ≤2*90CFM

    Noise                   ≤ 45db(150mm to blower)

    Ozone thickness      ≤0.01ppm  (150mm to nozzle center)

    Working temperature     0°C - 50°C

    Effective scope         600*300*750mm(L*W*H)

    Dimension and weight    640*175*118mm(L*W*H



    Working WaysDC

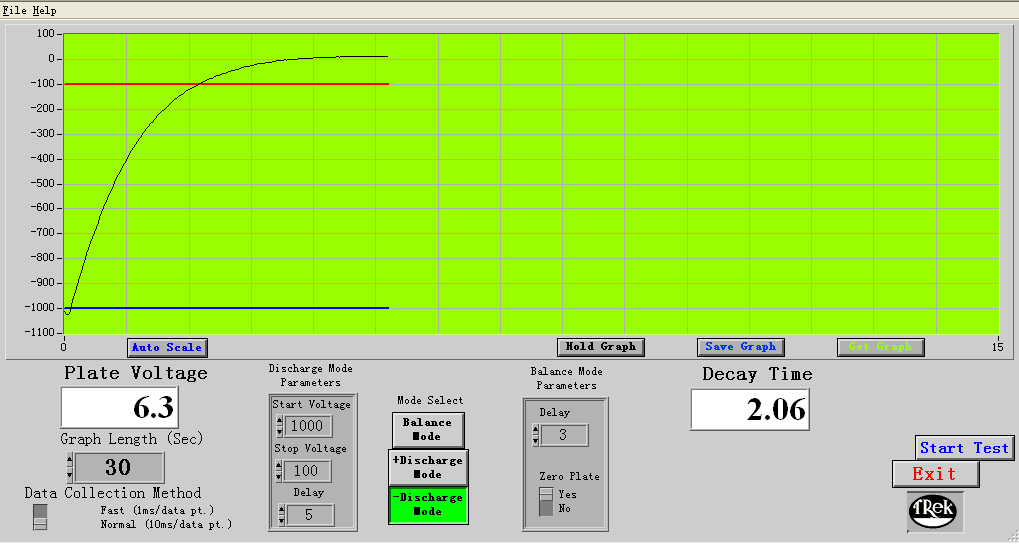

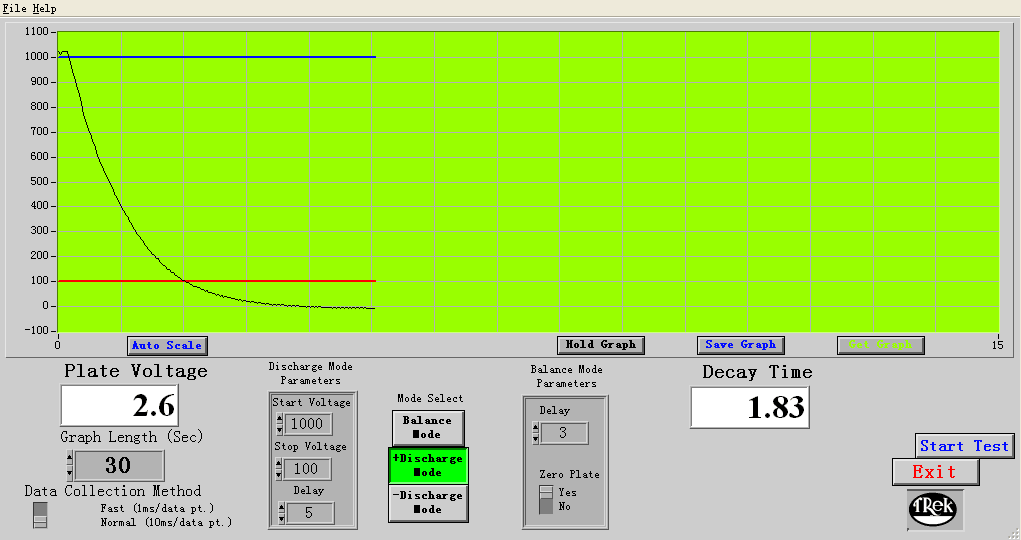

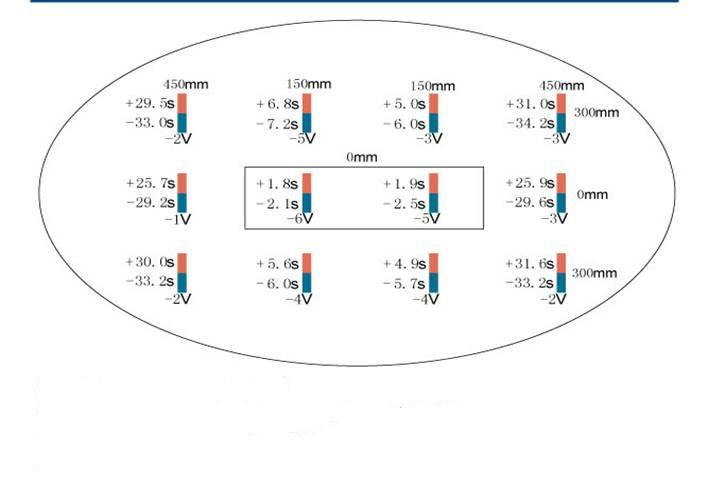

    Elimination Effect


    Testing instrument 3M-711 Static tester

    Testing standard SJ/T10694-2006GB/T14437-97

    Testing voltage ±1000 — ±100V Attenuation

    Testing environment Humidity30%—50%  Temperature20±5℃

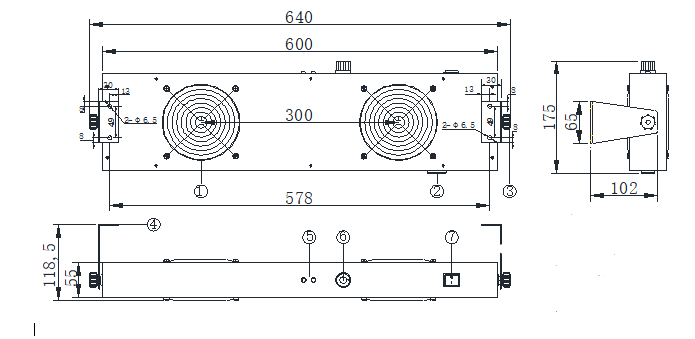

    Outline Dimensional Drawing

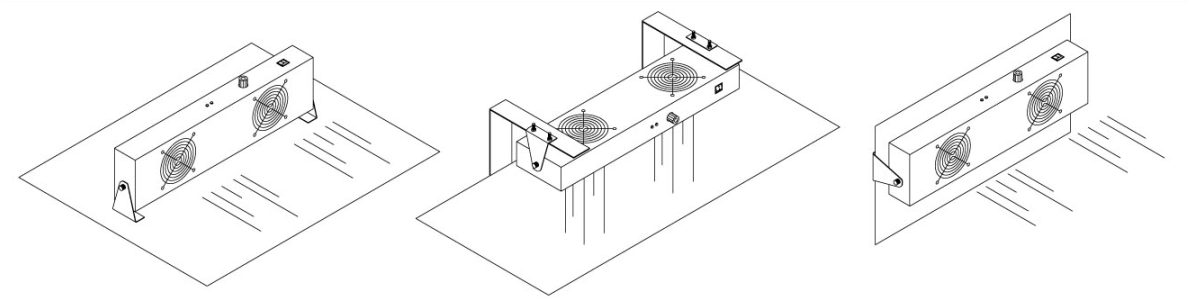

    图片7.pngPositioning
