Product title:Big Slot ESD Magazine Rack SP-03-1 /SP-03G-1 ( slot width 7mm )

  • Product detail:Big Slot ESD Magazine Rack SP-03-1 ( slot width 7mm )

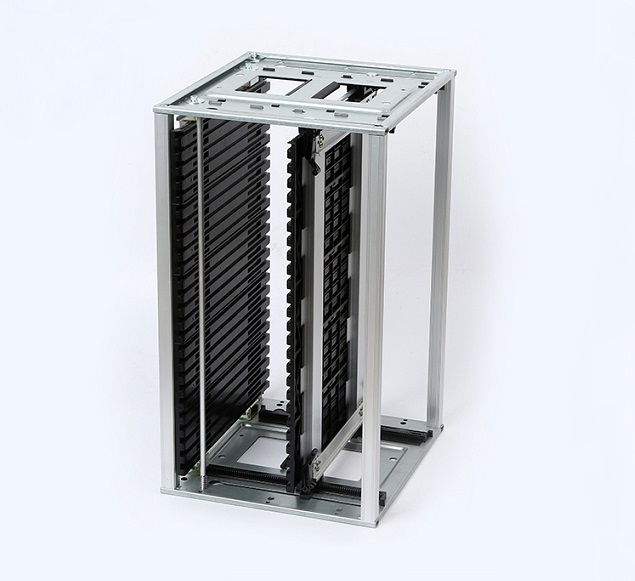

    Big Slot ESD Magazine Rack SP-03-1  /SP-03G-1 ( slot width 7mm )


    Precision, stablity and flexible handing are important feature for the use of PCB Magazines in automated assembly lines The stable and robust frame construction guaranteed a long lasting use of the SOUP ESD Magazine rack in your production .


    For automated assembly lines




    Magazine rack demension.png


    Specification:

    Material: Conductive PP /PPE, Zinc Coating Steel, Aluminium Alloy


    Application:

    -Store and logistic PCB, Electronic components

    -ESD Protection on SMT, SMD , Semiconductor industrial

    -Accoding to ANSI/ESD S20.20 Standard, ISO9001:2008 quality system .


    Detail:



    Contour Size(L×W×H)mmSlot of side platePCB board use standard
    DepthWidthPitchAdustable WidthPCB Stored
    355×320×5633.5mm7mm20mm(35-254)mm25
    Adjustment MethodSide PlateBase MaterialtWeight
    Handle Adjustable

    Five Pieces Assembled

    Metal6kg

    SP-03-1  Temperature 80℃ is only  fittable to PC board

    SP-03G -1Temperature120 ℃is only  fittable to PC board

    Surface Resistance
    Dissipative Type 1.0×10E4Ω~1.0×10E9Ω
