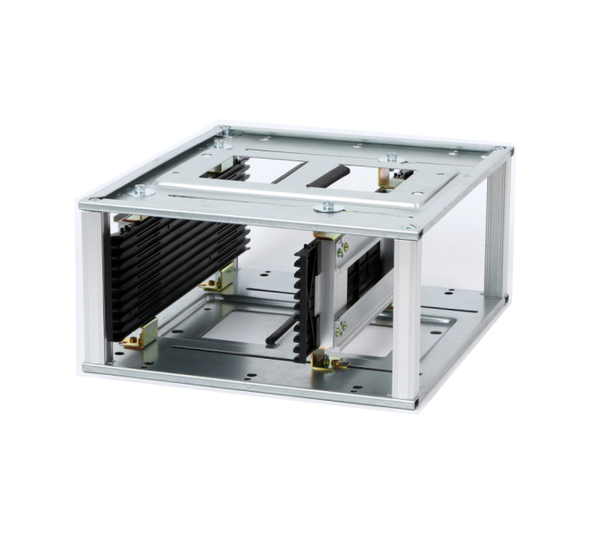

10 slots small ESD Magazine Rack SP-03-7 /SP-03-7G
Precision, stablity and flexible handing are important feature for the use of PCB Magazines in automated assembly lines The stable and robust frame construction guaranteed a long lasting use of the SOUP ESD Magazine rack in your production .
For automated assembly lines
Specification:
Material: Conductive PP /PPE, Zinc Coating Steel, Aluminium Alloy
Application:
-Store and logistic PCB, Electronic components
-ESD Protection on SMT, SMD , Semiconductor industrial
-Accoding to ANSI/ESD S20.20 Standard, ISO9001:2008 quality system .
Detail:
| Contour Size(L×W×H)mm | Slot of side plate | PCB board use standard | |||
| Depth | Width | Pitch | Adustable Width | PCB Stored | |
| 355×320×163 | 3mm | 5mm | 10mm | (50-250)mm | 10 |
| Adjustment Method | Side Plate | Base Material | Weight | ||
| Handle Adjustable /screw | 1 Pieces Assembled | Plastic | 3.1kg | ||
SP-05 Temperature: 80℃ is only fittable to PCB board temperature. SP-05 Temperature: 120℃ is only fittable to PCB board temperature. | |||||
| Surface Resistance | |||||
| Dissipative Type 1.0×10E4Ω～1.0×10E9Ω | |||||
