LL Size SMT ESD PCB Magazine Rack 535*530*570mm for SMT Production line

Position：A Safe electronic world » ESD Magazine Rack » SOUP PCB Magazines » Large Size SMT ESD PCB Magazine Rack 535*530*570mm SP-11/SP-11G

Product title：**Large Size SMT ESD PCB Magazine Rack 535530570mm SP-11/SP-11G**

Product detail：Product detail：Product detail：1) L size: 535*530*570mm , 2)top & bottom : Metal 3)Temperature: 80 or 120degree.C 4) PCB adjust: 530*(50-400)mm SOUP ESD PCB Magazine Racks are available with various types and sizes to meet customer's needs and all models are compatible with standard SMT equipment.

SMT ESD PCB Magazine Rack 535*530*570mm

Code: SP-11 /SP-11G

Precision, stablity and flexible handing are important feature for the use of PCB Magazines in automated assembly lines The stable and robust frame construction guaranteed a long lasting use of the SOUP ESD Magazine rack in your production .

For automated assembly lines

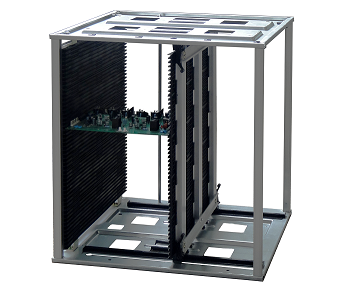

ESD PCB Magazine Rack SP-10,SP-10G.png

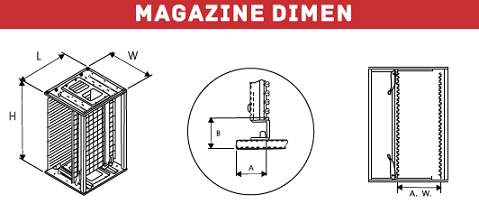

Magazine rack demension.png

Specification:

Material: Conductive PP /PPE, Zinc Coating Steel, Aluminium Alloy

Application:

-Store and logistic PCB, Electronic components

-ESD Protection on SMT, SMD , Semiconductor industrial

-Accoding to ANSI/ESD S20.20 Standard, ISO9001:2008 quality system .

Detail:

Contour Size(L×W×H)mm	Slot of side plate			PCB board use standard
	Depth	Width	Pitch	Adustable Width	PCB Stored
535×530×570	3mm	5mm	10mm	(50-460)mm	50
Adjustment Method	Side Plate			Base Materialt	Weight
Handle Adjustable Screw adjustable two option	Five Pieces Assembled			Metal	12kg
SP-11 Temperature 80℃ ，which is only fittable to pc board temperature. SP-11G Temperature 120℃ ，which is only fittable to pc board temperature.
Surface Resistance
Dissipative Type 1.0×104Ω～1.0×109Ω
