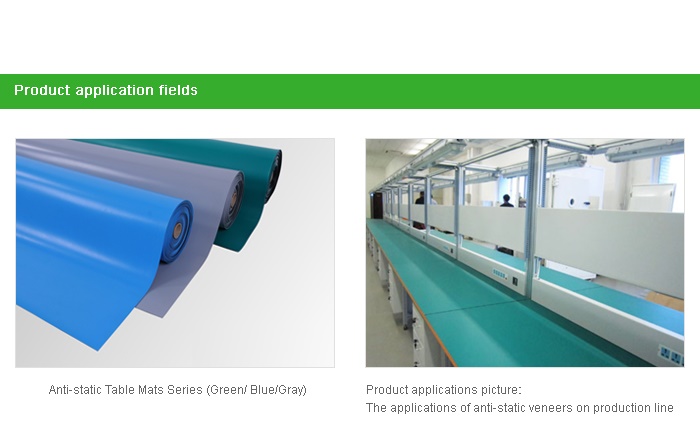

Product title:ESD Rubber Mats SP-MAT01

  • Product detail:1. Excellent vibration resistance and fatigue resistance; 2. Automatic adjustment of the force applied, to relieve the sense of fatigue. 3. Volume resistance ≤108Ω㎝, thickness at 2 or 3mm x10 m. 4. With long Service life

    Antistatic Rubber Mat SP-MAT01




    Advantages

    • 1.   Excellent vibration resistance and fatigue resistance;

    •      2.   Automatic adjustment of the force applied, to relieve the sense of fatigue.

    •     3.  Volume resistance ≤108Ω, thickness at 2 or 3mm x10 m.

    •     4.  With long Service life.

    Performance of antistatic table mat

    Performance of Antistatic Table Mat

      Specification

    antistatic layer(grey,blue ,

    green layer)

    Surface resistance,Ω

    107-109



     0.6*10*2 or 3mm

     0.9*10*2 or 3mm

    1*10*2 or 3mm

      1.2*10*2 or 3mm



    Friction static fields,V

    <100

    Conductive layer(black layer)

    Product specification, Ω

    ≤106

    Friction static fields,V

    <50

    Declining stage of static

       voltage


           5000-500V

    <1.9

    Volume resistance

    107-109Ω

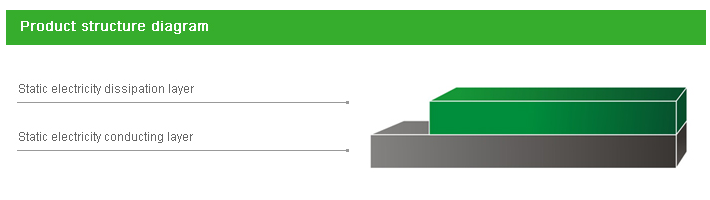

    The Anti-static table mat has two layers. The upper surface layer is anti-static layer, the bottom layer is black conductiving layer. Green and black to 1:1 proportion. Use more service life


    It consists of static electricity dissipation layer and static electricity conducting layer. It adopts quality nitrile-butadiene rubber as main material as well as quality

    conductive carbon black and static electricity dissipation powder


    It features abrasion resistance, oil resistance, acid and alkall resistance, aging resistance, flame resistance ,high elasticity, smooth surface , etc.
