Product title:SP-AZ3202 Ionizing Air Snake

  • Product detail:1, Exquisite appearance, simple structure, easy to move and install. 2,Metal ring switch with flash light enables user to monitor working status of the product. 3, HV alarm by beeping and LED. 4, Inductive current with high safety performance. 5, Fast discharge speed, low ion balance and high safety performance. 6, Optional photoelectric inductive switch to control airflow instead of manual operation. 7, All in one design saves space. 8, Change the air outlet freely according to the size of the product

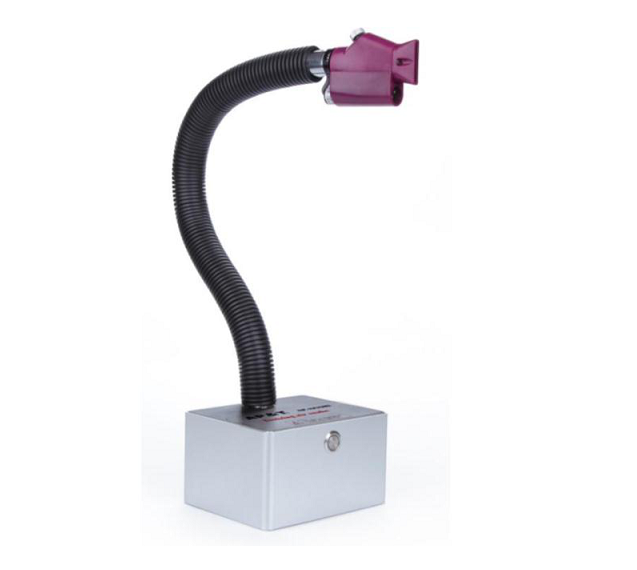

    SP-AZ3202 Ionizing Air Snake



    SP-AZ3202 Ionizing Air Snake.png


      Features

    1, Exquisite appearance, simple structure, easy to move and install.

    2,Metal ring switch with flash light enables user to monitor working status of the product.

    3, HV alarm by beeping and LED.

    4, Inductive current with high safety performance.

    5, Fast discharge speed, low ion balance and high safety performance.

    6, Optional photoelectric inductive switch to control airflow instead of manual operation.

    7, All in one design saves space.

    8, Change the air outlet freely according to the size of the product

    Industry Applications

    Precision electronic, medicine and semi-conductor industries

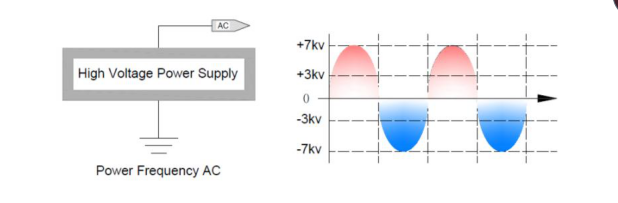

    Working WaysAC


    Specification:





    ◆  Elimination Effect


    Testing instrument3M-711   Static tester

    Testing standardESD.STM3.1-2000SJ/T 114462013

    Testing voltage±1000   — ±100V Attenuation

    Testing environmentHumidity   50±5%    Temperature:23±3Air pressure: 0.5MPa

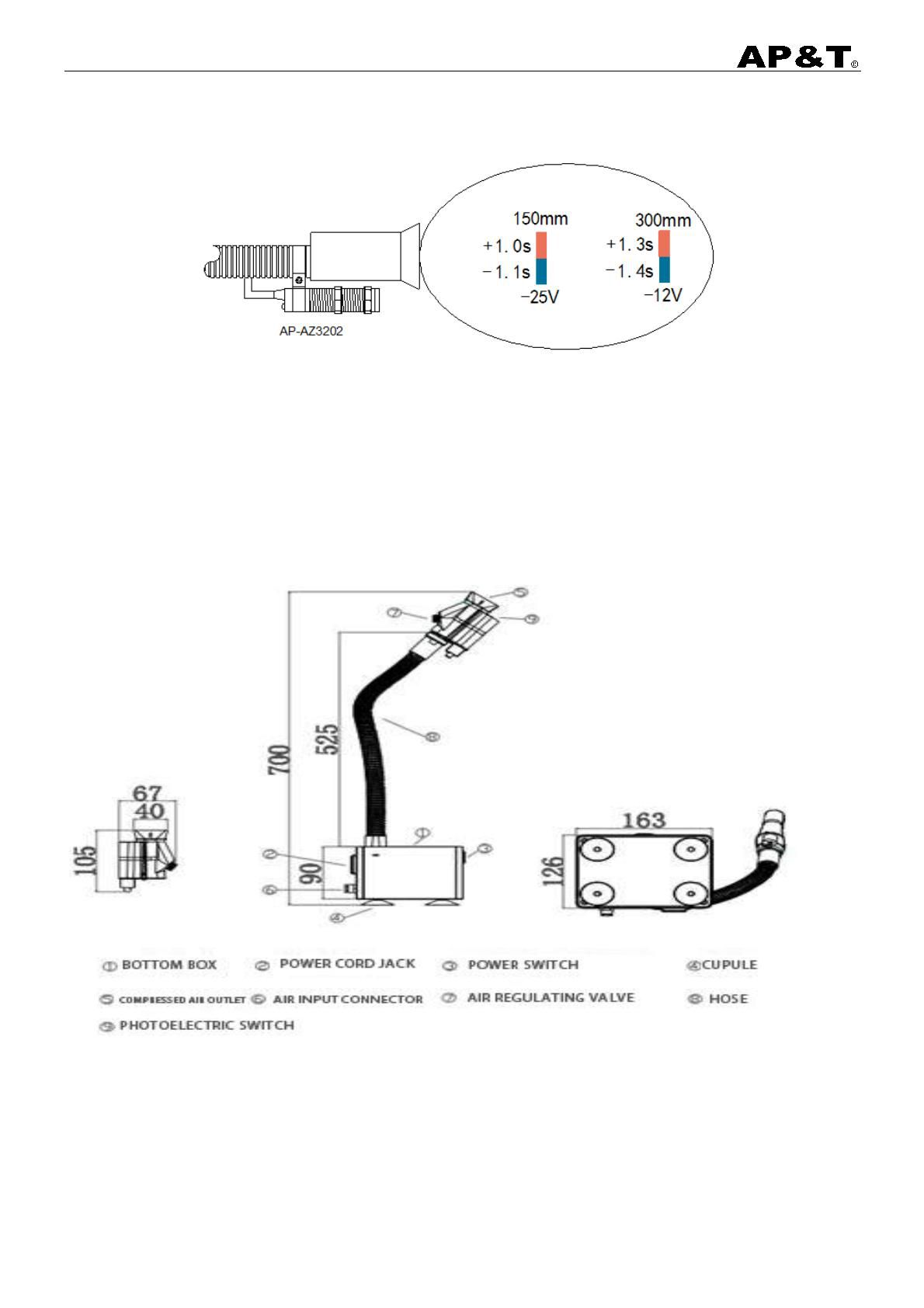

    ◆  Outline dimensional drawing
