Product title:SP-AP-AB1208 Ionizing Air Source AC Pulse Ion Bar

  • Product detail:-With alarm function of high voltage fault -Fast speed of static removing, low ion balance and high safety -Remote control ion output

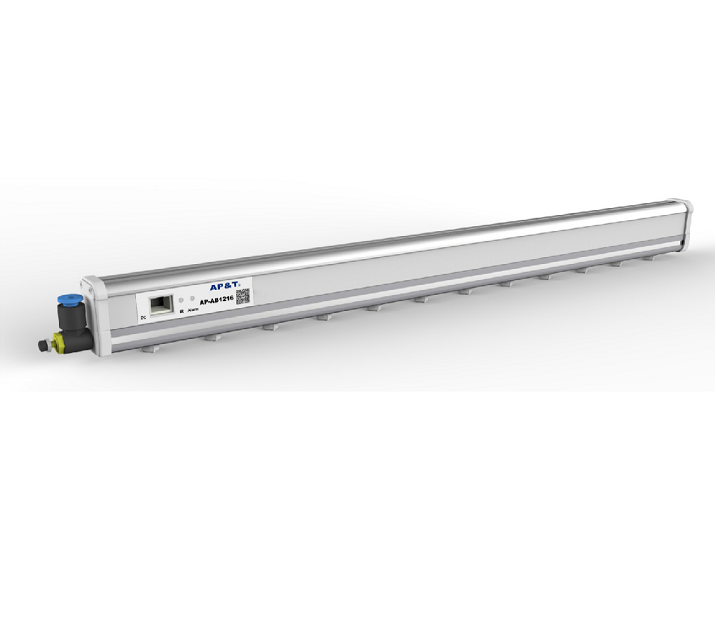

    SP-AP-AB1208 Air Source AC Pulse Ion Bar





    ionizing air bar 1.png

    ◆ Product Feature

    1.Bar shaped and cross over static eliminator

    2.Adjustable positive and negative ion output rate

    3.Manufactured by using the latest patented technology of static removing

    4.Fast speed of static removing, low ion balance and high safety

    5.Adjustable positive and negative ion frequency

    6.With alarm function of high voltage fault

    7.Remote control ion output

     8.Shock-proof function prevent user from being electric shocked

     9.Support integrate control ,easy to operate.





    Specification

    Model No.

    AP-AB1208

    Input Voltage

    DC 24V

    Input current

    600mA

    Power

    10W

    Working Voltage

    ±5000V

    Working method

    Pulse AC

    Emitter electrode

    SUS

    Discharge structure

    Resistance coupling

    Output frequency

    1,3,5,10,20,30,50Hz(Factory setting:30Hz)

    Duty Ratio

    10%—90%

    Working range

    L*W*H{385-410Probe distance 25mm);460-2960Probe distance 50mm}*300*1000mm

    Working distance

    100→1000mm

    Ion balance

    ≤|±30V|AVE

    Discharge speed

    ≤2S

    Warning indicate

    Power input indicator,High Voltage indicator(Green is normal,Red is abnormal)

    Status monitoring

     Series network monitoring / wireless monitoring

    Airflow pressure

    ≤0.6MPa

    air source connector With throttle valve

    Φ8-G1/8 Black

    Working temperature

    0℃-50℃

    Working humidity

    70%

    Dimension

    L*W*H{385-410Probe distance25mm);460-2960Probe distance50mm}*35*78.4mm

    Bar body material

    Flame retardant PVCABSALSUS

    Accessories

    Flexible 180° install bracket

    Power adapter

    GRT-240200DC24V 2ADual network port output123*61*40.5mmL*W*H

    Power adapter cable length

    2.5m

    Warranty

    1 Year

    Certificate

    CE

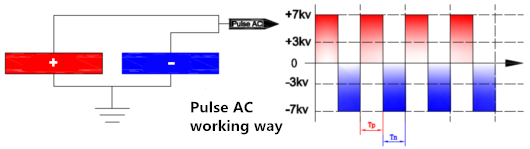

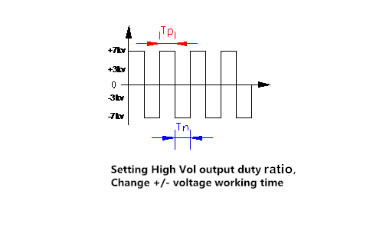

    Working WaysAC

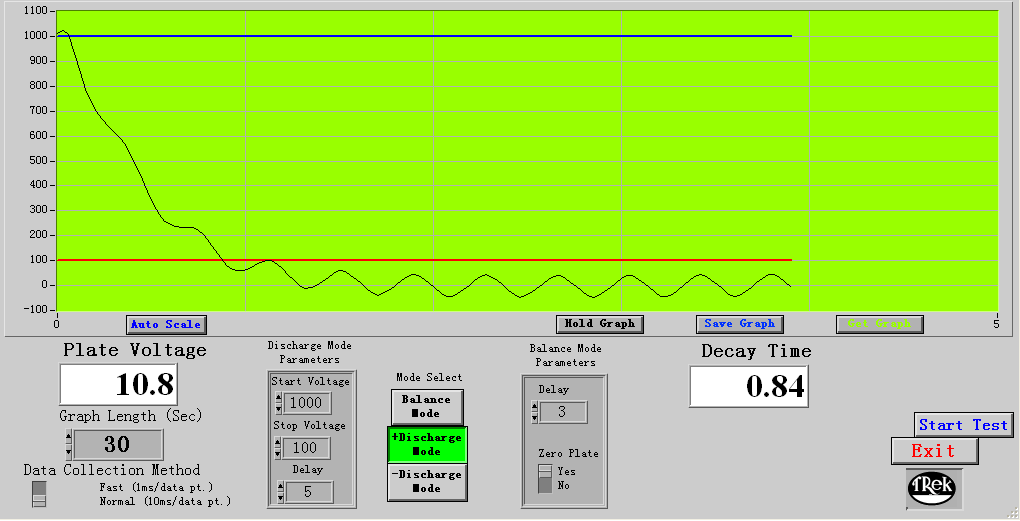

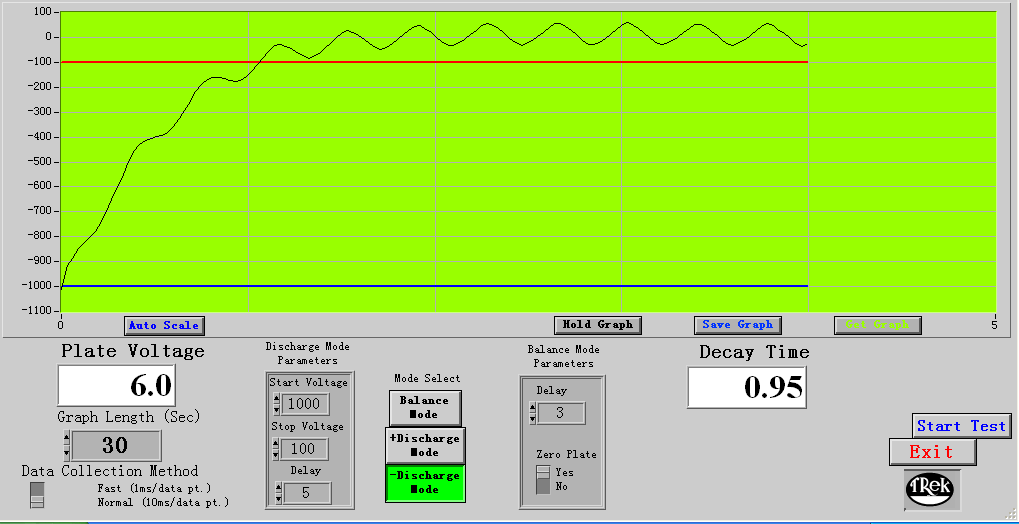

    Elimination Effect




    Testing instrument 3M-711 Static tester

    Testing standardESD.STM3.1-2000SJ/T 114462013

    Testing voltage ±1000 — ±100V Attenuation

    Testing environment Humidity50±5%  Temperature:23±3







    Testing data as belowTesting distance:300mm,Ion bar width:880mm,Airflow:0.3MpaFrequency:30Hz):






    Test standardANSI/ESD.STM3.1ANSI/ESD.SP3.3SJ/T 11446—2013

    Test DeviceTrek157 static detector

    Test Voltage±1000V  ±100V attenuation

    Test environmentHumidity 50±5%Temperature23±3

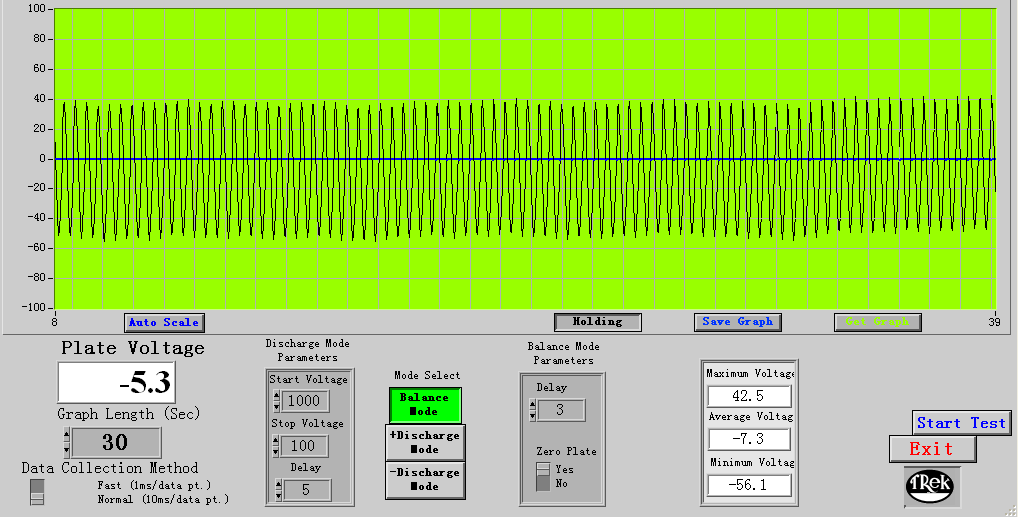

    Other test environment,test result as below:






    Ion bar length385mmWorking frequency30Hz

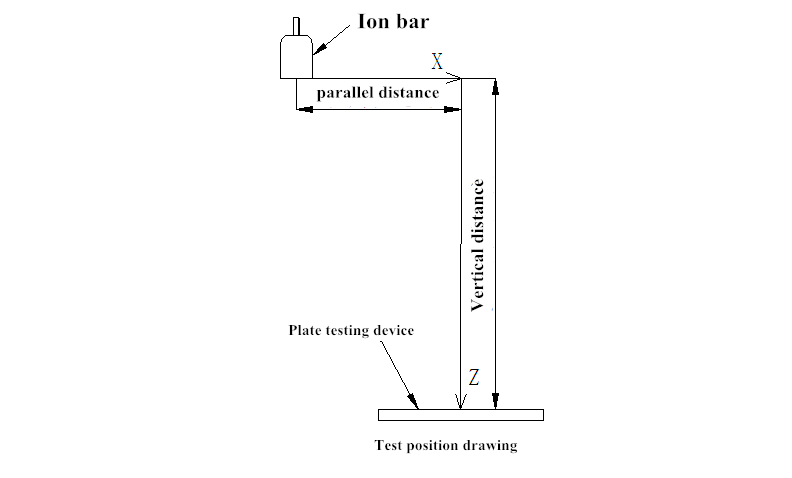

    Test distancemm

    Air flow pressureMPaNote 1*

    Duty ratio(%)

    Discharge ability

    + discharge speedS

    - discharge speedS

    Ion balanceV

    Vertical

    parallel

    300

    -150

    0.2

    49

    2.7

    2.9

    -0.7

    0

    52

    0.5

    0.5

    4.1

    150

    49

    2.9

    3

    -0.7

    -150

    0.4

    49

    1.3

    1.5

    -5

    0

    50

    0.2

    0.2

    12.9

    150

    49

    1.6

    1.9

    -2.4

    -150

    0.6

    49

    1.1

    1.2

    -3.8

    0

    49

    0.1

    0.2

    -11.6

    150

    49

    1.3

    1.2

    13.1

    500

    -150

    0.2

    50

    2.6

    3.1

    -5.6

    0

    51

    1.1

    1.3

    -2.6

    150

    51

    2.9

    3.1

    2.2

    -150

    0.4

    49

    1.5

    1.8

    -5.9

    0

    49

    0.6

    0.8

    -15

    150

    50

    1.8

    1.6

    11.7

    -150

    0.6

    49

    0.9

    1.2

    -3.9

    0

    49

    0.4

    0.6

    -4.6

    150

    49

    1.2

    1.4

    -2.6

    600

    -150

    0.2

    50

    1.8

    2.4

    -3.4

    0

    51

    1.3

    1.7

    1.2

    150

    50

    2.1

    2.6

    -2.4

    -150

    0.4

    50

    1.1

    1.2

    9.1

    0

    49

    0.7

    1

    -4.6

    150

    49

    1.1

    1.4

    -3.7

    -150

    0.6

    49

    0.7

    0.9

    -3.4

    0

    49

    0.5

    0.7

    -6.8

    150

    49

    0.9

    1.1

    -1.3

    Notice 1*——Real-time airflow pressure values

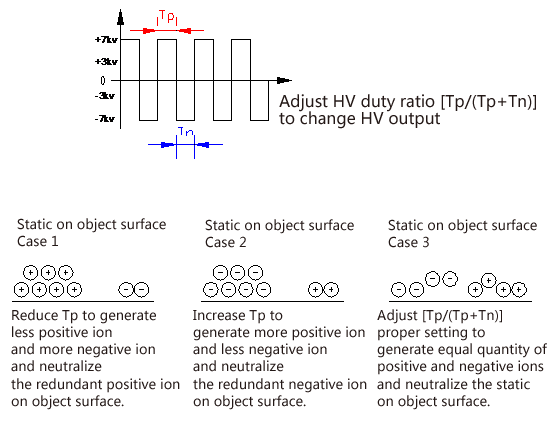

    The ion balance performance will have difference depend on bar length,airflow pressure,working frequency,install distance;It should be adjusted duty ratio according to real working environment to make ion balance in best.

    Outline Dimensional Drawing







    Positioning

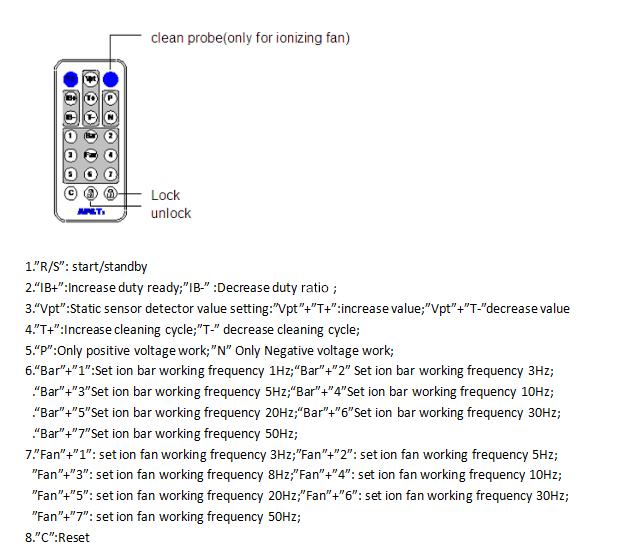

    Remote control
