Product title:SP-AP-AB1216 Air Source AC Pulse Ion Bar with PC connecting function

  • Product detail:Feature: can connect with Computer to monitor and record data .

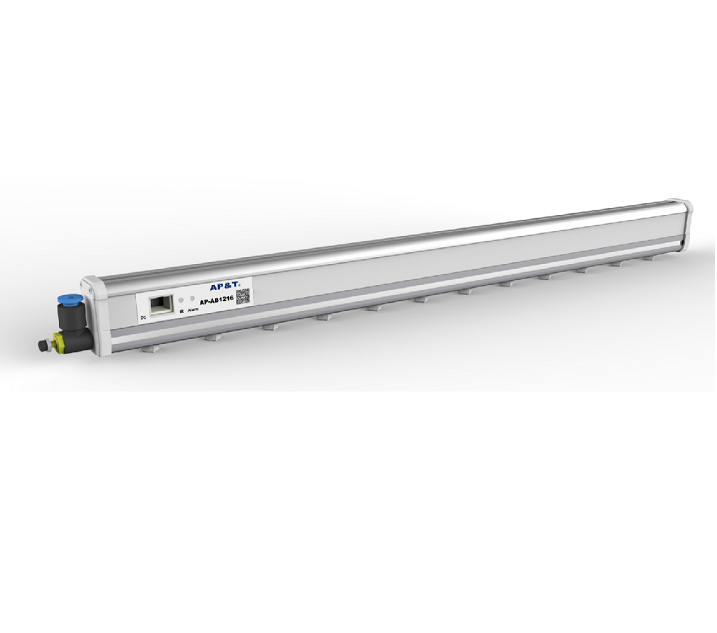

    SP-AP-AB1216 Air Source AC Pulse Ion Bar with PC connecting function

     ionizing air bar.png




    ◆ Features

    1.Bar shaped and cross over static eliminator

    2.Adjustable positive and negative ion output rate

    3.Manufactured by using the latest patented technology of static removing

    4.Fast speed of static removing, low ion balance and high safety

    5.Adjustable positive and negative ion frequency

    6.With alarm function of high voltage fault

    7.Remote control ion output

     8.Shock-proof function prevent user from being electric shocked









    Specification

    Model

    AP-AB1216

    Output voltage

    DC±5.00(KV)

    Output frequency

    5, 30Hz (default)

    Duty factor

    10%-90%

    Power

    10W

    Working distance

    1001000mm

    Ion balance

    |±30V| (AVE)

    Discharge time

    2S

    Working temperature

    0-50

    Working humidity

    70%



    Working Ways(AC)
















    Elimination Effect




    Testing instrument 3M-711 Static tester

    Testing standardESD.STM3.1-2000;SJ/T 11446—2013

    Testing voltage ±1000 — ±100V Attenuation

    Testing environment Humidity50±5%  Temperature:23±3










    Outline dimensional drawing






    Positioning






    Remote controller
