Product title:Soldering Tester SP-192

  • Product detail:Measure the tip temperature, leak voltage and ground resistance accurately.

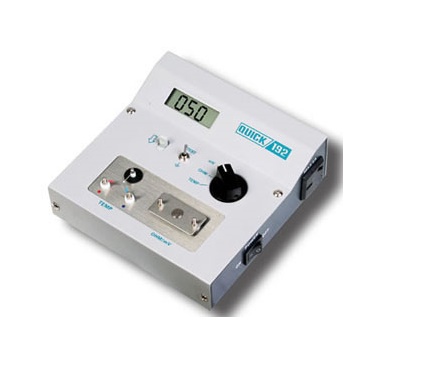

    Soldering Tester SP-192




    Features
    1. Measure the tip temperature, leak voltage and ground resistance accurately.
    2. 2-in-1 design can be used to measure the temperature of solder pot and other solvent with a probe.
    3. Use reliable micro-computer check, high precision.
    4. Meet MIL-STD-2000 leak voltage measurement standard.

    Specifications
    Temperature

    Resolution1℃
    Measuring range0-600℃(32℉-1200℉)
    Accuracy±3℃/±6℉
    SensorK-type thermometer

    Voltage

    Resolution0.1mV
    Measuring range0-90mV(AC)
    Accuracy±(3%+2 digits)

    Note: Meet MIL-STD-2000 standard.

    Resistance

    Resolution0.1Ω
    Measuring range0-90Ω
    Accuracy±(1%+2 digits)

    Display

    LCD31/2 digits
    Power consumption1 W
    Dimensions158(L)*150(W)*50(H)mm
    WeightAbout 1.0kg
    Environment conditions0-40℃, 0-80%RH
