Product title:Whote Plate ESD Magazine Rack 355*320*563mm SP-08/SP-08G

  • Product detail:Whote Plate ESD Magazine Rack SP-08/SP-08G Product detail:1) M size: 355*320*563mm , 2)top & bottom : Plastic 3)Temperature: 80 or 120degree.C 4) PCB adjust: 350*(50-250)mm , 5) Sideboard: whole plate

    Whote Plate ESD Magazine Rack SP-08/SP-08G

    Code: SP-08 /SP-08G

    Precision, stablity and flexible handing are important feature for the use of PCB Magazines in automated assembly lines The stable and robust frame construction guaranteed a long lasting use of the SOUP ESD Magazine rack in your production .


    For automated assembly lines

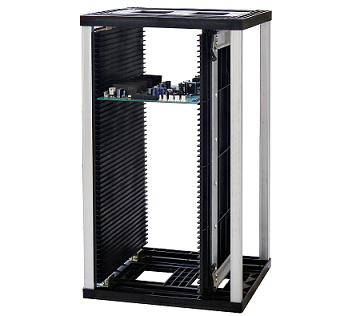

    ESD PCB Magazine Rack SP-08,SP-08G.png

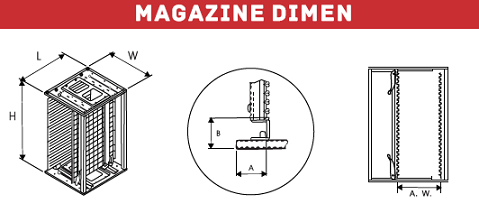

    Magazine rack demension.png



    Specification:

    Material: Conductive PP /PPE, Zinc Coating Steel, Aluminium Alloy


    Application:

    -Store and logistic PCB, Electronic components

    -ESD Protection on SMT, SMD , Semiconductor industrial

    -Accoding to ANSI/ESD S20.20 Standard, ISO9001:2008 quality system .


    Detail:

    Contour Size(L×W×H)mmSlot of side platePCB board use standard
    DepthWidthPitchAdustable WidthPCB Stored
    355×320×5633mm7mm10mm(50-250)mm50
    Adjustment MethodSide PlateBase MaterialtWeight
    Handle Adjustable

    Whole Plates

    Plastic6.5kg

    SP-08  Temperature:80 are only fittable to pc board temperature.

    SP-08G  Temperature:120 are only fittable to pc board temperature.

    Surface Resistance

    Dissipative Type 1.0×104Ω~1.0×109Ω
