Product title:Whole Plate Metal Top PCB Magazines Rack 355*320*563mm SP-07/SP-07G

  • Product detail:1) Sideboard: whole plate, (2) M size: 355*320*563mm , (3) Top &bottom :Metal , (4) PCB adjust size L* W : 355*(50-250mm)

    Whole Plate Metal Top PCB Magazines Rack

    Code: SP-07 /SP-07G

    Precision, stablity and flexible handing are important feature for the use of PCB Magazines in automated assembly lines The stable and robust frame construction guaranteed a long lasting use of the SOUP ESD Magazine rack in your production .


    For automated assembly lines

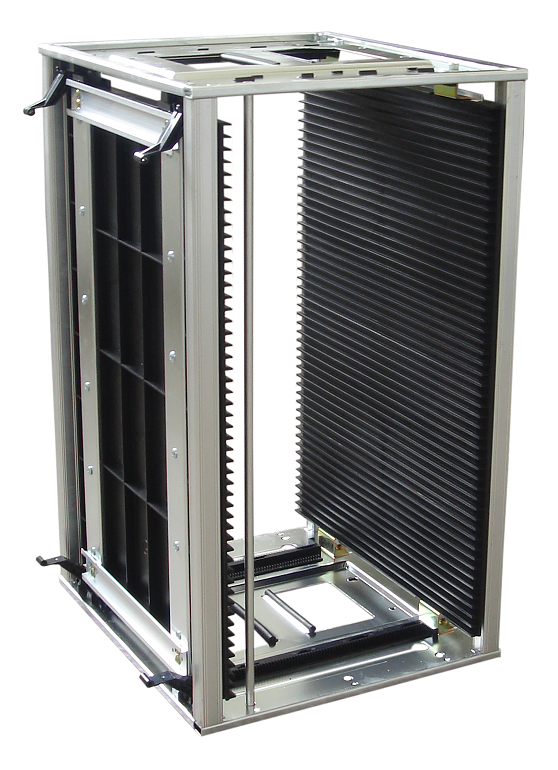

    SP-06 whole plate.png

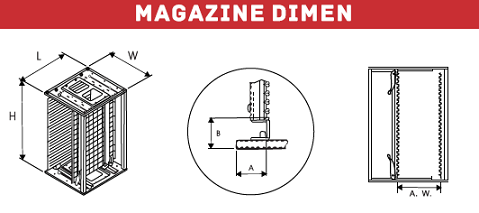

    Magazine rack demension.png



    Specification:

    Material: Conductive PP /PPE, Zinc Coating Steel, Aluminium Alloy


    Application:

    -Store and logistic PCB, Electronic components

    -ESD Protection on SMT, SMD , Semiconductor industrial

    -Accoding to ANSI/ESD S20.20 Standard, ISO9001:2008 quality system .


    Detail:

    Contour Size(L×W×H)mmSlot of side platePCB board use standard
    DepthWidthPitchAdustable WidthPCB Stored
    355×320×5633mm5mm10mm(50-250)mm50
    Adjustment MethodSide PlateBase MaterialWeight
    Handle Adjustable /screw

    Whole plate

    Plastic7.5kg

    SP-07 Temperature: 80℃ ,which is only  fittable to PCB board temperature.

    SP-07G Temperature: 120℃ ,which is only  fittable to PCB board temperature.

    Surface Resistance
    Dissipative Type 1.0×10E4Ω~1.0×10E9Ω
