Product title:Top Plastic SMT ESD PCB Magazine Rack 355*320*563mm SP-06/SP-06G

  • Product detail:1) Top & bottom : plastic , 2) Temperature: 80degree.C, 3) M size: 355*320*563mm , 4) PCB adjust L*W :350* (50-250mm),

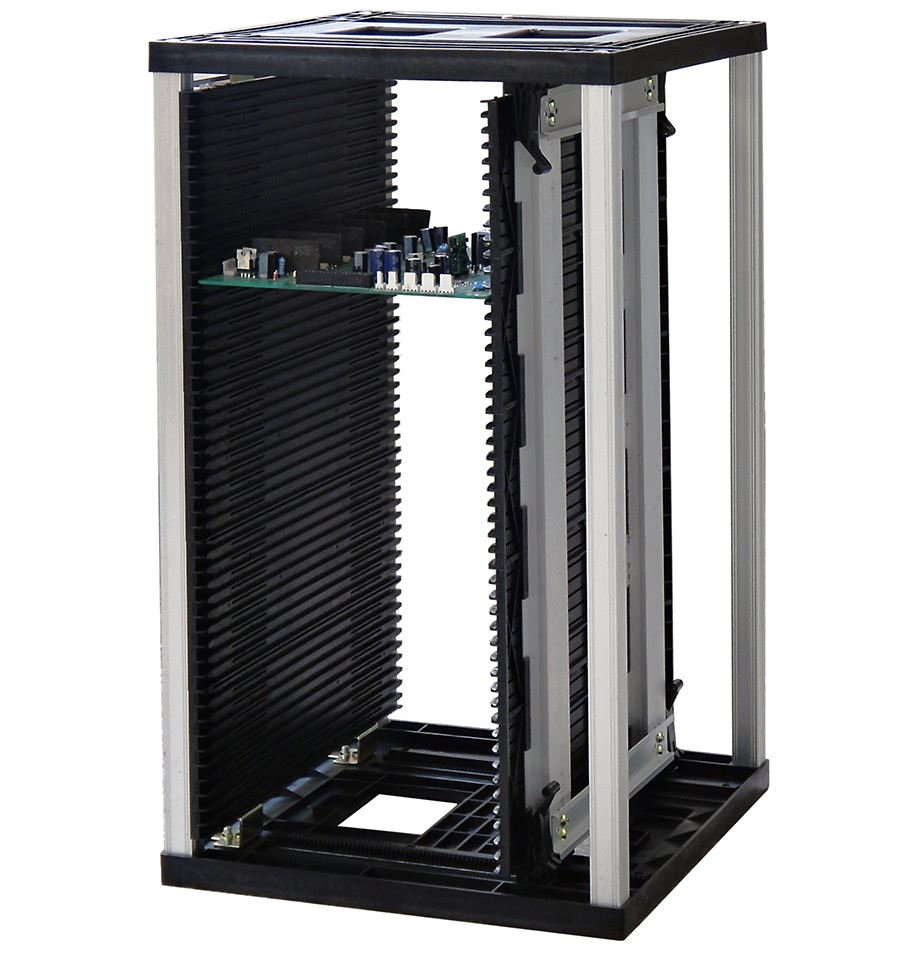

    Top Plastic SMT ESD PCB Magazine Rack 355*320*563mm SP-06/SP-06G

    Code: SP-06/SP-06G

    Precision, stablity and flexible handing are important feature for the use of PCB Magazines in automated assembly lines The stable and robust frame construction guaranteed a long lasting use of the SOUP ESD Magazine rack in your production .


    For automated assembly lines

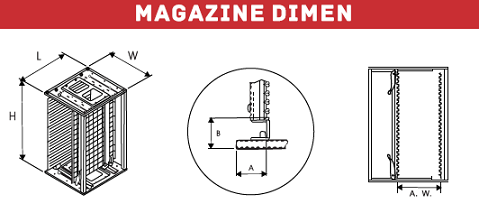

    Magazine rack demension.png



    Specification:

    Material: Conductive PP /PPE,  Aluminium Alloy


    Application:

    -Store and logistic PCB, Electronic components

    -ESD Protection on SMT, SMD , Semiconductor industrial

    -Accoding to ANSI/ESD S20.20 Standard, ISO9001:2008 quality system .


    Detail:

    Contour Size(L×W×H)mmSlot of side platePCB board use standard
    DepthWidthPitchAdustable WidthPCB Stored
    355×320×5633mm5mm10mm(50-250)mm50
    Adjustment MethodSide PlateBase MaterialWeight
    Handle Adjustable /screw

    Five Pieces Assembled

    Plastic4.5kg

    SP-06 Temperature: 80℃ ,which is only  fittable to PC board temperature.

    SP-06G Temperature:120℃ ,which is only  fittable to PC board temperature.

    Surface Resistance
    Dissipative Type 1.0×10E4Ω~1.0×10E9Ω
