Product title:30 slots SMT ESD PCB Magazine Rack 355*320*363mm SP-05/SP-05G

  • Product detail:1) Size:355*320*363mm , 2) Temperature: 80 or 120degree.C , 3) Top: Metal  , 4) PCB adjust L*W : 350*(50-250mm)

    30 slots SMT ESD PCB Magazine Rack 355*320*363mm SP-05/SP-05G


    Precision, stablity and flexible handing are important feature for the use of PCB Magazines in automated assembly lines The stable and robust frame construction guaranteed a long lasting use of the SOUP ESD Magazine rack in your production .



    For automated assembly lines

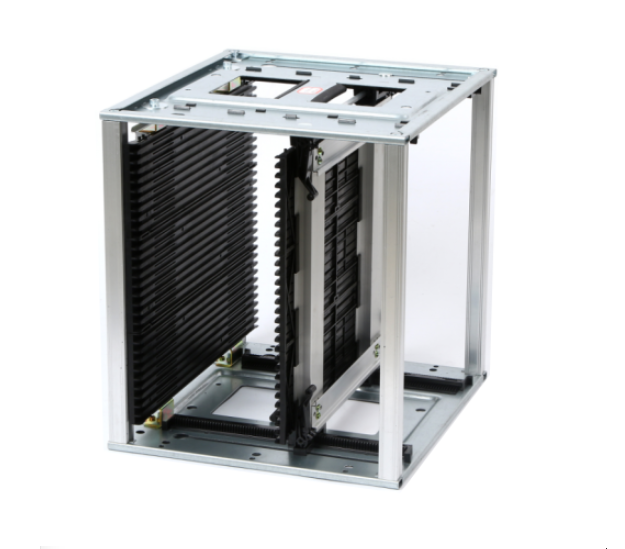

    Small size esd magazine rack.png

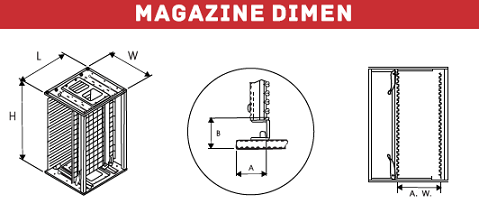

    Magazine rack demension.png

    Specification:

    Material: Conductive PP /PPE, Zinc Coating Steel, Aluminium Alloy


    Application:

    -Store and logistic PCB, Electronic components

    -ESD Protection on SMT, SMD , Semiconductor industrial

    -Accoding to ANSI/ESD S20.20 Standard, ISO9001:2008 quality system .


    Detail:

    Contour Size(L×W×H)mmSlot of side platePCB board use standard
    DepthWidthPitchAdustable WidthPCB Stored
    355×320×3633mm5mm10mm(50-250)mm30
    Adjustment MethodSide PlateBase MaterialWeight
    Handle Adjustable /screw

    3 Pieces Assembled

    Plastic4.5kg

    SP-05 Temperature: 80℃ is only  fittable to PCB board temperature.

    SP-05 Temperature: 120℃ is only  fittable to PCB board temperature.

    Surface Resistance
    Dissipative Type 1.0×10E4Ω~1.0×10E9Ω
