Product title:Top Plastic SMT ESD PCB Magazine Rack 355*315*580mm SP-01

  • Product detail:SOUP ESD PCB Magazine Racks are available with various types and sizes to meet customer's needs and all models are compatible with standard SMT equipment.

    SMT ESD PCB Magazine Rack 355*315*580mm

    Code :SP-01

    Precision, stablity and flexible handing are important feature for the use of PCB Magazines in automated assembly lines The stable and robust frame construction guaranteed a long lasting use of the SOUP ESD Magazine rack in your production .


     for automated assembly lines

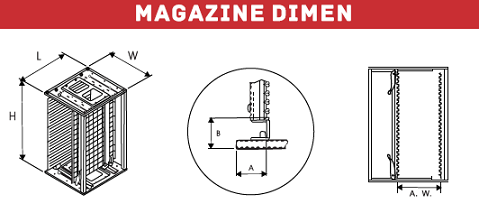

    Magazine rack demension.png



    Specification:

    Material: Conductive PP /PPE, Aluminium Alloy


    Application:

    -Store and logistic PCB, Electronic components

    -ESD Protection on SMT, SMD , Semiconductor industrial

    -Accoding to ANSI/ESD S20.20 Standard, ISO9001:2008 quality system .


    Detail:

    Contour Size(L×W×H)mmSlot of side platePCB board use standard
    DepthWidthPitchAdustable WidthPCB Stored
    355×315×5803.5mm7mm10mm(80-250)mm50 pcs
    Adjustment MethodSide PlateBase MaterialtWeight
    Screw AdjustableWhole PlatePlastic5kg
    NT80℃ is only fittable to PC board temperature,.
    Surface Resistance
    Dissipative Type 1.0×104Ω~1.0×108Ω
