Product title:Inductive Ionizing air snake SP-AZ3201

  • Product detail:◆Features 1、Small size, convenient installation, flexible operation and reliable performance 2、Static eliminating while cleaning the surface dust 3、Controlled by far automatic and inductive IR circuit without hand operation 4、Integration of the inductive control section and power supply

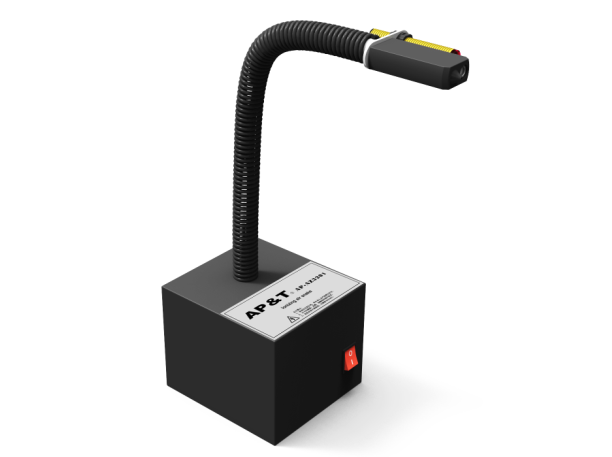

    SP-AZ3201 Inductive Ionizing Air Snake



    Ionizing air snake.png



     Features

    1Small size, convenient installation, flexible operation and reliable performance

    2Static eliminating while cleaning the surface dust

    3Controlled by far automatic and inductive IR circuit without hand operation

    4Integration of the inductive control section and power supply





    Industry Applications



    Used in electronics, optoelectronics, semiconductors, plastics, films and printing industries

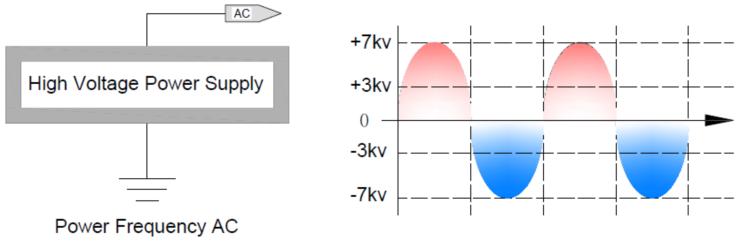

    ◆ Working Ways AC












    Specification



    Model             SP-AP-AZ3201

    Input Voltage        AC220V 50Hz or AC110V 60Hz

    Power             26W

    Working distance     150300mm

    Ion balance             ≤|±50V|150mm testing center from the air snake)

    Discharge speed        ≤1.5S150mm testing center from the air snake)

    Noise             <65db(150mm from the air outlet

    Medium used           clean pressed air

    Air pressure rang        0.2 - 0.6MPa

    Working temperature     0°C - 50°C

    Air connector           ф8mmcustomize available)

    Dimension            180*135*118mmL*W*H)(cabinet)

    Net weight            3350gincluding power cord, optoelectronic switch and clamp ring

    Gross weight           3780g



    Elimination Effect


    Testing instrument3M-711  Static tester

    Testing standardESD.STM3.1-2000SJ/T 114462013

    Testing voltage±1000V-±100V Attenuation

    Testing environmentHumidity50±5%Temperature23±3

    Testing Air pressure0.5MPa





























    Dimension
